- Place of Origin: Shandong
- Brand Name: hongfa machinery
- Model Number: QT4-15B

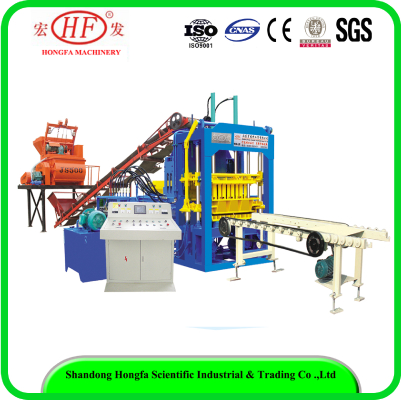

Brief introduction
1)It is a compact machine with electric and hydraulic system, each procedure action locks with each other to guarantee the machine operate safely, easily and dependablely.
2)Through mold-releasing oil cyclinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks, which can be piled up immediately so that the pallet investment can be saved directly.
3)The unique forcing charge system can make use of various kinds of industrial waster and material such as coal ash, cement, sand, stone, slag, and so on. The machine can severs several purposes and produce various specification standard bricks, concrete blocks, porous blocks, paving bricks etc.
Our service
Pre-sale service support:
According to each customer's demand and budget, we offer you the professional solution, process flow design and production equipment. More importantly, we welcome every customer to visit our factory and working machine in the site before placing the order. We will arrange cars, hotels and translators for the visiting customers.
During-sale service support:
Assist clients to finish the factory planning. Before delivery equipment to customer s, complete debugging and checking. Provide a full instruction manual for the whole system. Provide technical guidance for the installation and use of the unit, including installation advice and electrical connection. Provide unit debugging and training for the operation of the machine on the working site and coordiante the customers with check and acceptance of the unit.
After-sale service support:
Send technicians to installation site for the guidance, equipment adjustment and training. Provide high-quality spare parts thoughout the year, and the maintenance technicians are always ready to provide technical help.
- Place of Origin: Shandong
- Brand Name: hongfa machinery
- Model Number: QT4-15B
Main technical specification
Overall Dimension | 6800×1500×2700(mm) |
Rated pressure | 16MPa |
Main vibration form | Platform vibration |
Cycle Time | 15-25 seconds |
Vibrating Frequency | 4600 rolls/minute |
Motors Power | 27.85kw |
Pallet Size | 950*550(mm) |
Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Productivity of hollow block making machine
Brick Style | Brick size(mm) | Cycle molding | QTY/Mould | Per hour |
Hollow brick
| 400*200*200 | 16-20s | 4pcs | 720~960pcs |
240*115*90 | 15-20s | 14pcs | 2520~3360pcs | |
Color brick |
225*112.5*60
| 15-17s | 28pcs | 5930~6720pcs |
