- Place of Origin: Shandong
- Brand Name: hongfa machinery

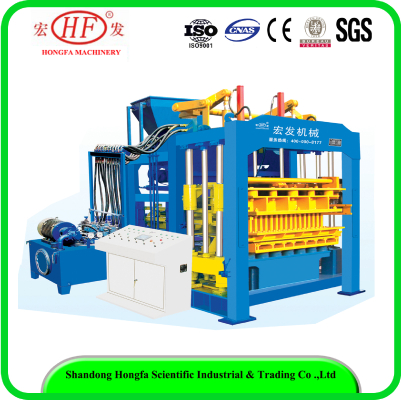

- Model Number: QT12-15
- Weight: 12000.000 kg
Company information
Shandong Hongfa Machinery Co., Ltd is a construction and building materials equipments manufacturer mainly produce all kinds of AAC block making machine, concrete mixing plant, mixer, concrete block making machine, concrete tile making machine and concrete pipe making machine with more than 20 years experience and being the biggest manufacturer in China at present. All the products are conformity with the standard of the state, and gets the ISO9001-2008 Quality System Certificate, also honored as 'One of the Top Ten Famous Brands of Bricks & Tile Field in China' and other honors.
Brief introduction
1)Particular storage and discription material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.
2)Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
3)The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.
Raw Materials
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
- Place of Origin: Shandong
- Brand Name: hongfa machinery
- Model Number: QT12-15
- Weight: 12000.000 kg
Main technical specification
Overall Dimension | 9350×3200×2900(mm) |
Rated Pressure | 21MPa |
Main vibration form | Platform vibration |
Cycle Time | 15-25 seconds |
Vibrating Frequency | 2800-4500 rolls/minute |
Motors Power | 44kw |
Pallet Size | 1300*900(mm) |
Productivity
Brick style | Brick size(mm) | Cycle molding | QTY/Mould | Per hour |
Hollow brick
| 400*200*200 | 16-20s | 12pcs | 1728~2160pcs |
240*115*90 | 15-20s | 30pcs | 5400~7200pcs | |
Color brick |
225*112.5*60
| 15-17s | 38pcs | 6840~9120pcs |
