Product Details
- Size: 4.2
- Place of Origin: Shandong
- Brand Name: hongfa machinery
- Model Number: QTJ4-40B2
- Weight: 1740.000 kg

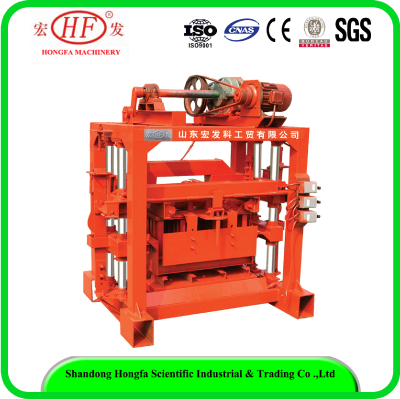

Based on the former block machine,QTJ4-40B2 is the reformed machine with reasonable design,favorable property,and super-strong vibration motor. It manufactures the bricks with good quality,large density,and high strength.This machine adopts top die push and pull and automatic scraper,which is simple to operate as well as the large-scale equipment.
1.Technical Specifications
| Molding cycle | 35-45s |
| Production capacity | 2500~3000pcs/shift(8h) |
| Vibration frequency | 4500 r/min |
| Exciting power | 10MPA |
| Overall power | 9.5KW |
| Overall dimension | 2060*1700*2280mm |
| Molding form | Vibration and Pressure |
| Pallets size | 850*450mm |

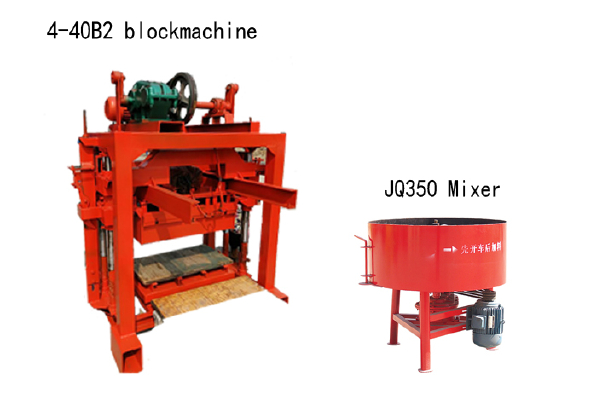

| JQ350Twin-shaft concrerte mixer | Input Capacity | 570L |
| output Capacity | 350L | |
| Productivity | ≥0.55m3/h | |
| Dimension mm | φ 350×1250×1200mm | |
| power | 5.5KW | |
| Weight | 530kg |
- Size: 4.2
- Place of Origin: Shandong
- Brand Name: hongfa machinery
- Model Number: QTJ4-40B2
- Weight: 1740.000 kg
2. Capacity
| Item | Size(mm) | Qty/mold | Cycle molding | Per day 8 hours |
| Hollow Block | 400×200×200 | 4pcs | 35~45s | 2000-2200pcs |
| Solid block | 240*115*53 | 21pcs | 35~45s | 8000-9000pcs |
| Paver brick | 200×160×60 | 8pcs | 35~45s | 4000-4400pcs |
