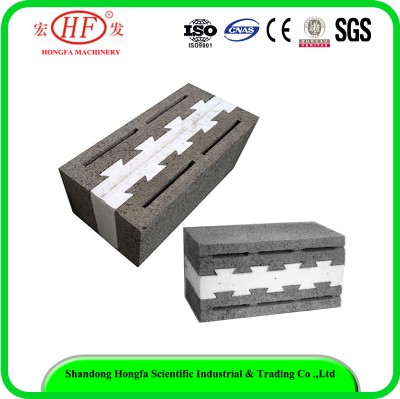

Brief introduction of EPS concrete brick making machine , QT10-15 large concrete brick machine , EPS insulation block machine :

  1.Particular storage and discerption material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.

  2.Brick making machine Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.

  3.The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.

Main Parameter of EPS concrete brick making machine , QT10-15 large concrete brick machine , EPS insulation block machine :

1. Dimension :9350*2320*2950mm

2. Rated pressure :21MPa

3. Main vibration :platform

4. Vibration frequency :2800-4500r /min

5. Pallet Size :1100*900mm

6. Molding Cycle :15~25(s )

7. Overall Power :44.58kw
