- Size: 12
- Place of Origin: shandong
- Brand Name: hongfa machinery
- Model Number: QT12-15
- Weight: 2000.000 kg

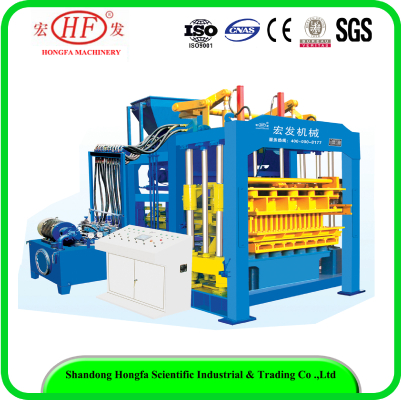

QT12-15 fully automatic and lowest price concrete block making machine
n
n Particular storage and discerption material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.
n Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
n The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.
Size | Quantity | Cycle moulding | Per hour | Per day | |
Hollow brick | 390*190*190 | 12 | 20-25s | 1728-2160pcs | 17300-21600pcs/day |
Porous brick | 240*115*90 | 30 | 15-20s | 5400—7200pcs | 54000-72000pcs/day |
Standard brick | 240*115*53 | 60 | 15-17 | 12700-14400pcs | 12700-14400pcs/day |
Main Paremeter
1. dimension :9350*2520*2950mm
2. Rated pressure :21MPa
3. Main vibration :platform
4. Vibration frequency :2800-4500r /min
5. Pallet Size :1300*900mm
6. Molding Cycle :15~25(s )
7. Overall Power :46kw
