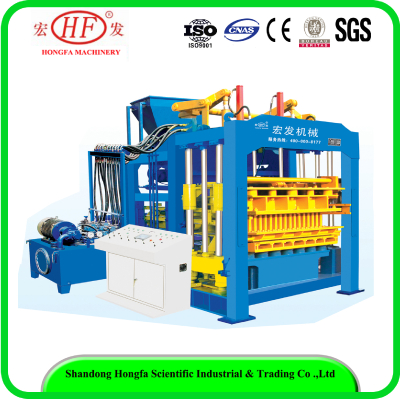

Brief introduction of QT12-15 heavy automatic hydraulic concrete block making machine , fully automatic concrete block production line :

1.   Particular storage and discerption material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.

2.   Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.

3.  The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis

Main Parameter of QT12-15 heavy automatic hydraulic concrete block making machine , fully automatic concrete block production line :

1. dimension :9350*2520*2950mm

2. Rated pressure :21MPa

3. Main vibration :platform

4. Vibration frequency :2800-4500r /min

5. Pallet Size :1300*900mm

6. Molding Cycle :15~25(s )

7. Overall Power :44kw

Productivity of QT12-15 heavy automatic hydraulic concrete block making machine , fully automatic concrete block production line:
