- Place of Origin: Shandong
- Brand Name: hongfa machinery

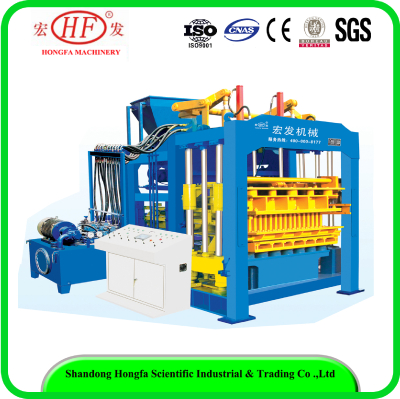

- Model Number: QT12-15C
- Weight: 13500.000 kg
Brief introduction
1) Particular storage and discription material system insure the feeding accuracy and avoiding the effevt of exterior material. So the products have high density.
2)Adopting synchronization vibration insures the products making average. The frequency can change according to different technicals. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
3)The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.
Raw material
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Pre-sale service support:
According to each customer's demand and budget, we offer you the professional solution, process flow design and production equipment. More importantly, we welcome every customer to visit our factory and working machine in the site before placing the order. We will arrange cars, hotels and translators for the visiting customers.
During-sale service support:
Assist clients to finish the factory planning. Before delivery equipment to customer s, complete debugging and checking. Provide a full instruction manual for the whole system. Provide technical guidance for the installation and use of the unit, including installation advice and electrical connection. Provide unit debugging and training for the operation of the machine on the working site and coordiante the customers with check and acceptance of the unit.
After-sale service support:
Send technicians to installation site for the guidance, equipment adjustment and training. Provide high-quality spare parts thoughout the year, and the maintenance technicians are always ready to provide technical help.
- Place of Origin: Shandong
- Brand Name: hongfa machinery
- Model Number: QT12-15C
- Weight: 13500.000 kg
Main technical specification
Overall Dimension | 9350×3200×2900(mm) |
Rated Pressure | 21MPa |
Main vibration form | Platform vibration |
Cycle Time | 15-25 seconds |
Vibrating Frequency | 2800-4500 rolls/minute |
Motors Power | 44kw |
Pallet Size | 1300*900(mm) |
Brick style | Brick size(mm) | Cycle molding | QTY/Mould | Per hour |
Hollow brick
| 400*200*200 | 16-20s | 12pcs | 1728~2160pcs |
240*115*90 | 15-20s | 30pcs | 5400~7200pcs | |
Color brick |
225*112.5*60
| 15-17s | 38pcs | 6840~9120pcs |
