- Size: 20
- Place of Origin: China
- Brand Name: hongfa machinery
- Model Number: QT4-20C
- Weight: 100000.000 kg

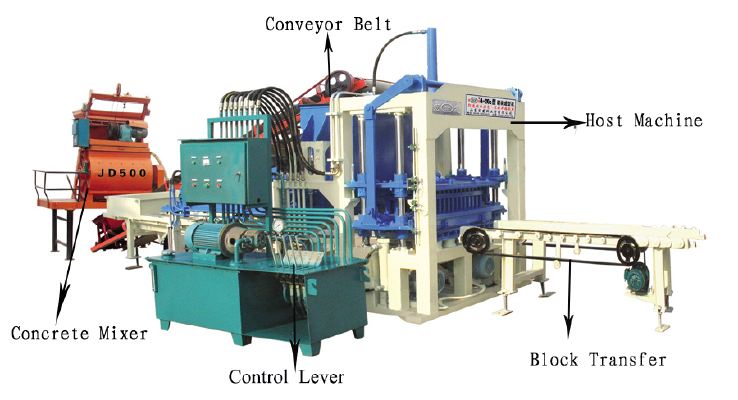

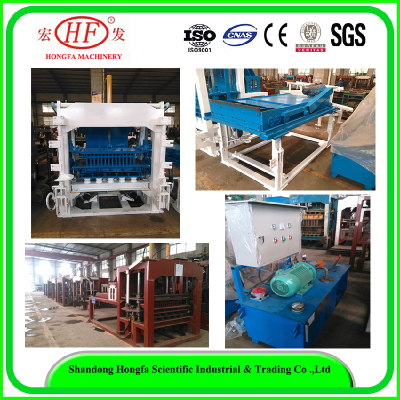

Brief introduction of QT4-20C Cement Block Making Machine price , semi-automatic concrete block making machine :
1.The machine adopts hydraulic system and the working procedure is very even and dependable, hydraulic press together with efficiently vibration make the shape, which has high density and good quality.
2.It is a practical machine that simple in structure, artistic in figure. Especially suitable to the production of the standard bricks, it can produce various kinds of paving bricks, porous bricks, roads bricks etc.
3.The reasonable material proportion have the capacity of making high-density standard bricks, what’s more, it can be piled up directly.
Theoretical productivity of QT4-20C Cement Block Making Machine price , semi-automatic concrete block making machine:
Item | Size (L*W*H) | Quantity Per Mold | Cycle moulding | Per hour | Per day |
Hollow brick | 400*200*200 | 4 pcs | 15-20s | 720pcs | 7200pcs |
Hollow brick | 400*150*200 | 5 pcs | 20-23s | 900 pcs | 9000pcs |
Color brick | 225*112.5*60 | 14 pcs | 20-25s | 2520pcs | 25200pcs |
Main Technical Specifications | |
Overall Dimension | 7100*1600*2610mm (Board feeder and block feeder included) |
Rated pressure | 16MPa |
Main vibration form | Platform vibration |
Cycle Time | 20-25 seconds |
Vibrating Frequency | 4600 rolls/minute |
Motors Power | 24 KW |
Pallet Size | 1020*570*25mm |
