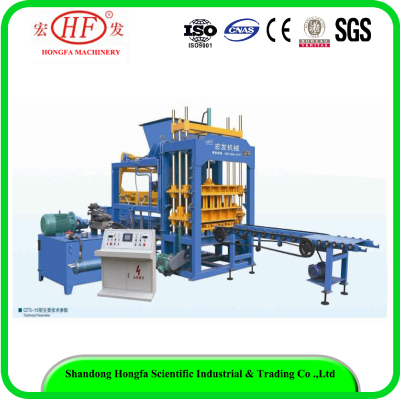

Brief introduction of QT5-15 full automatic concrete paver brick hollow block making machine curb stone :
1. It is a compact machine with electric and hydraulic system, each procedure action locks with each other to guarantee the machine operate safely, easily and dependablely.
2. Through mold releasing oil cyclinder, the mold box was locked into the vibration table with high rigidity
to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three
seconds to ensure the high-density, especially suitable to produce the standard blocks, which can be piled
up immediately so that the pallet investment can be saved directly.
3. The unique forcing charge system can make use of various kinds of industrial waster and material such as
coal ash, cement, sand, stone, slag, and so on. The machine can severs several purposes and produce various
specification standard bricks, concrete blocks, porous blocks, paving bricks etc.
| Main Technical Specification of QT5-15 full automaticconcrete paver brick hollow block making machine curb stone | |||||
| Overall Dimension | 7400x1950x2800(mm) | ||||
| Rated pressure | 21MPa | ||||
| Main vibration form | Platform vibration | ||||
| Cycle Time | 15-25 seconds | ||||
| Vibrating Frequency | 2800-4500 rolls/minute | ||||
| Motors Power | 26.5KW | ||||
| Pallet Size | 1100x550(mm) | ||||
| Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes | ||||
| Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. | ||||
Productivity of QT5-15 full automatic concrete paver brick hollow block making machine curb stone
| Name | Size (mm) | Molding Cycle | QTY /Mould | Per hour |
| Hollow brick | 400*200*200 | 15--25S | 5pcs | 900~1200pcs |
| 400*150*200 | 15--18S | 6pcs | 1080~1300pcs | |
| Clour brick | 225*112.5*60 | 25~30s | 16pcs | 2900~3700 |
