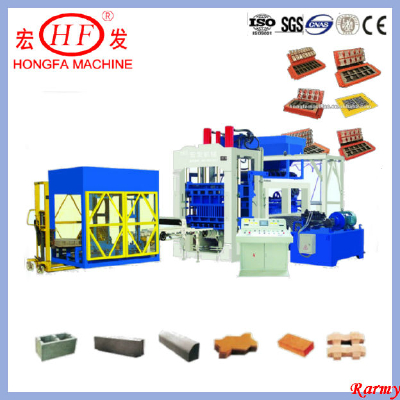

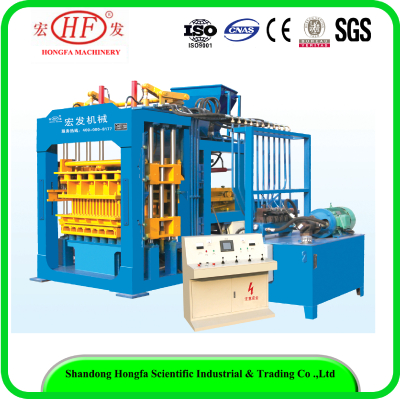

QT8-15C Automatic Concrete Block Machine Production Line

QT8-15C Automatic Concrete Block Machine Production Line

  • FOB Price:US $23,484 -25,484 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 3000 Sets per Year
  • Port: Qingdao
  • Payment Terms: L/C,D/A,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1990-01-08
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Shandong
  • Brand Name:  hongfa machinery
  • Model Number:  QT8-15


1.Brief introduction

1)The machine can serve several purposes and can produce pavement bricks, riverside bricks, revetment bricks, square bricks, grassed bricks and so on with different mould. Low frequency in feeding material, high frequency vibration.

2)Platform vibrating works together with mould, so that the concrete can be fully fluidified and exhausted in two or three seconds to reach the high density. The advanced technique of hydraulic-controlled proportion can handle the oil press and amount of the system freely, therefore, different materials can be able to produce the high quality products.

3)All the procedures are operated by PLC and euip with out and in date device to realize person-machine conversation. Control system also including the advanced safe logical system and fault doagnosis system.


Raw Materials

crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlitr and other industrial wastes.






  • Place of Origin:  Shandong
  • Brand Name:  hongfa machinery
  • Model Number:  QT8-15

Main technical specification

Overall Dimension8300*2800*2900mm
Rated pressure

21MPa

Main vibration form

Platform vibration

Cycle time15-20s
Vibrating frequency

2800-4500 rolls/minute

Motors power51kw
Pallet size950*900mm



Productivity

 Brick Style

Size(mm)

Cycle molding

QTY/Mould

Per hour





Hollow

brick



400*200*200

16-20s

4pcs

720~960pcs

240*115*90

15-20s

14pcs

2520~3360pcs

Color

brick



225*112.5*60



15-17s

28pcs

5930~6720pcs
