- Size: 20
- Place of Origin: Shandong
- Brand Name: hongfa machinery
- Model Number: QTF3-20
- Weight: 2000.000 kg

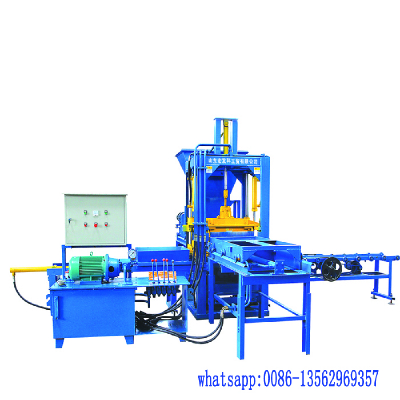

This color paver forming mache is a practical machine that simple in structure, artistic in figure. Especially suitable to the production of the paving brick,bread brick , it can produce various kinds of paving bricks,roads bricks etc.

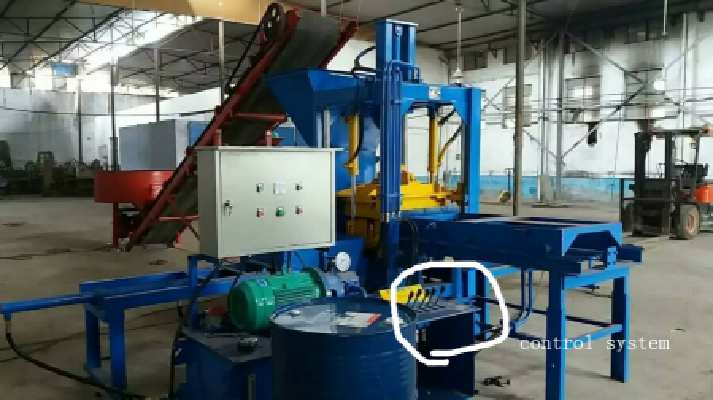

Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple trained one to the operator.
Product scope: It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks、hollow blocks, perforated bricks, and standard bricks etc.
- Size: 20
- Place of Origin: Shandong
- Brand Name: hongfa machinery
- Model Number: QTF3-20
- Weight: 2000.000 kg
1. Main Technical Specifications | ||||||
Main vibration form | Platform vibration | |||||
Cycle Time | 20 seconds | |||||
Overall weight | 2000kg | |||||
Motors Power | 20.75KW | |||||
Pallet Size | 680*530(mm) | |||||
Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes | |||||
Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. | |||||
2.Productivity of QTF3-20 block making machine | ||||||
Samples | Size mm | Cycle molding | QTY /Mould | Per hour | Per 8hours | |
Color brick | 200*100*90 | 25-30s | 10 | 1200-1440pcs | 9600-11520pcs | |
Interlock brick | 220*112.5*60 | 20-25s | 8 | 1150~1440pcs | 9200-11520pcs | |
Hollow Block | 400*200*200 | 20-25s | 3 | 432-540pcs | 3456-4320pcs |
