- Place of Origin: shandong
- Brand Name: hongfa machinery
- Model Number: QTJ4-26
- Weight: 4000.000 kg

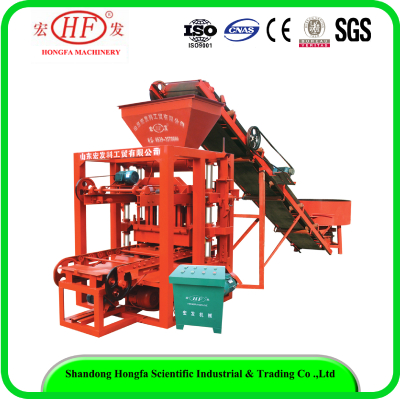

bottom price block making machine which you must not
It adopts four-lead ,channel steel stander making the equipment more firm and the mould and the squeeze head orentation more precise ,and bed mould orientation vertical vibration and upper mould compression vibration ,which improves the efficiency greatly and manufactures blocks with more average density and higher strength
Theoretical workshop area:200-500m2,need about 3-5workers,the curing area and stacking area arranged according to your specific situation
(1) Productivity
Item | Specification size | Quantity per mold | Cycle mouding | Per hour | Per day |
Hollow brick | 400*200*200 | 4pcs | 24-26s | 300-400pcs | 3000-4000pcs/day |
Porous brick | 240*115*90 | 9pcs | 22-24s | 700pcs | 7000pcs/day |
Standard brick | 240*115*53 | 21pcs | 22-24s | 1500pcs | 15000pcs/day |
(2) Main Technical Parameter
Dimension | 2060*1730*2580mm |
Main vibration | platform |
Vibration frequency | 4200r /min |
Pallet Size | 880*480*38mm |
Molding Cycle | 26(s) |
Overall Power | 14.25kw |
- Place of Origin: shandong
- Brand Name: hongfa machinery
- Model Number: QTJ4-26
- Weight: 4000.000 kg
Item | Specification size | Quantity per mold | Cycle mouding | Per hour | Per day |
Hollow brick | 400*200*200 | 4pcs | 24-26s | 300-400pcs | 3000-4000pcs/day |
Porous brick | 240*115*90 | 9pcs | 22-24s | 700pcs | 7000pcs/day |
Standard brick | 240*115*53 | 21pcs | 22-24s | 1500pcs | 15000pcs/day |
Dimension | 2060*1730*2580mm |
Main vibration | platform |
Vibration frequency | 4200r /min |
Pallet Size | 880*480*38mm |
Molding Cycle | 26(s) |
Overall Power | 14.25kw |
