- Place of Origin: shandong
- Brand Name: hongfa machinery
- Model Number: QT5-15

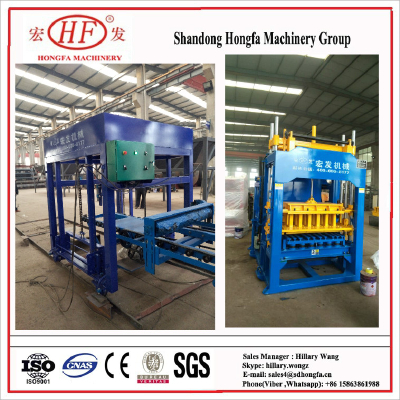

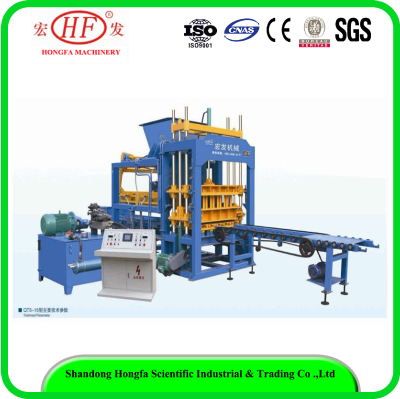

the cheapest PLC control automatic block making machine QT5-15
A. The frame of the host machine is used hight quality 15*10CM square tube steel, all from the best steel supplier Laigang, Jinggang.
B. To use the most famous Hydraulic brand - Calyca from Taiwan.
C. The eletrical components and touch screen are all used imported Siemens.
ⅠBrief introduction
1 . It is a compact machine with electric and hydraulic system, each procedure action locks with each other to guarantee,the machine operate safely, easily and stable.
2. Through mold-releasing oil cylinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks, which can be piled up immediately so that the pallet investment can be saved directly.
3. The unique forcing charge system can make use of various kinds of industrial waster and material such as coal ash, cement, sand, stone, slag, and so on. The machine can severs several purposes and produce various specification standard bricks, concrete blocks, porous blocks, paving bricks etc.
| Ⅲ Main Technical Specifications | ||||||
| Overall Dimension | 7400x1750x2800(mm) | |||||
| Rated pressure | 21MPa | |||||
| Main vibration form | Platform vibration | |||||
| Cycle Time | 15-25 seconds | |||||
| Vibrating Frequency | 2800-4500 rolls/minute | |||||
| Motors Power | 26.5KW | |||||
| Pallet Size | 1100x550(mm) | |||||
| Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes | |||||
| Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. | |||||
| ⅣProductivity of QT5-15 block making machine | ||||||
| Brick tyle | Size mm | Cycle molding | QTY /Mould | Per hour | Per 8 hour | |
| Hollow brick | 400*200*200 | 15--25S | 5 | 900~1200pcs | 7200-9600pcs | |
| 400*150*200 | 15--18S | 6 | 1080~1300pcs | 8640-10400pcs | ||
| Color brick | 225*112*60 | 25~30s | 16 | 1920~2300pcs | 15360-18400pcs | |
| Solid brick | 203*102*57 | 13-17s | 30 | 6360-8300pcs | 50880-66400pcs | |
for the machine work video, pls contract with me then i send to you,
Hillary
whatsapp: 86-15863861988
skype:hillary.wongz
email:wanghillary@hotmail.com
- Place of Origin: shandong
- Brand Name: hongfa machinery
- Model Number: QT5-15
| Ⅲ Main Technical Specifications | ||||||
| Overall Dimension | 7400x1750x2800(mm) | |||||
| Rated pressure | 21MPa | |||||
| Main vibration form | Platform vibration | |||||
| Cycle Time | 15-25 seconds | |||||
| Vibrating Frequency | 2800-4500 rolls/minute | |||||
| Motors Power | 26.5KW | |||||
| Pallet Size | 1100x550(mm) | |||||
| Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes | |||||
| Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. | |||||
| ⅣProductivity of QT5-15 block making machine | ||||||
| Brick tyle | Size mm | Cycle molding | QTY /Mould | Per hour | Per 8 hour | |
| Hollow brick | 400*200*200 | 15--25S | 5 | 900~1200pcs | 7200-9600pcs | |
| 400*150*200 | 15--18S | 6 | 1080~1300pcs | 8640-10400pcs | ||
| Color brick | 225*112*60 | 25~30s | 16 | 1920~2300pcs | 15360-18400pcs | |
| Solid brick | 203*102*57 | 13-17s | 30 | 6360-8300pcs | 50880-66400pcs | |
